Fiber Optic Network Construction

Building a fiber optic network is a highly technical yet vital process that enables communities and businesses to access high-speed, reliable fiber optic internet. From the initial site survey to the final fiber to the home (FTTH) connection, every stage requires careful planning, coordination, and execution. Below is a detailed look at each step of fiber optic network construction, including key terms and methods used across the industry.

1. Site Survey and Planning

The first and most critical step in fiber optic network construction is the site survey—also known as a field survey. Engineers and planners assess the project area to determine the most efficient routes for the fiber optic installation. This includes mapping out streets, terrain, existing utility infrastructure, and potential obstacles like waterways or buildings.

A fiber construction plan is then developed based on the survey results. The plan outlines the route of the fiber optic cables, whether they’ll be installed aerially (on poles) or underground (beneath streets or sidewalks). It also identifies central distribution points in a hub-and-spoke layout—where a central hub connects to multiple neighborhood branches—often using a Passive Optical Network (PON) architecture.

A passive optical network uses optical splitters to distribute signals from one central optical line terminal (OLT) to multiple optical network terminals (ONTs) without requiring powered network equipment in between. This design minimizes energy costs and simplifies maintenance, making it ideal for large-scale FTTH network deployments.

2. Approvals and Permits

Before construction begins, network builders must secure the necessary approvals and permits. Fiber routes often run through public rights-of-way (such as along roads or sidewalks) or utility easements—designated corridors where infrastructure like electricity, water, and communication lines can be installed.

When fiber optic construction crosses private property, private property easements must be obtained from the owners. Each municipality has its own regulations, so fiber optic infrastructure developers must secure permits from local authorities before any digging or pole work begins. Compliance ensures safety, reduces legal risks, and maintains community trust during construction.

3. Preparing the Worksite

Once approvals are in place, the project team schedules construction crews and notifies local residents or businesses about upcoming work. This communication is essential for maintaining transparency and minimizing disruptions.

Before digging or trenching, crews mark existing underground utilities such as water, gas, and electric lines using colored flags or paint. Red flags are for electric power lines, yellow flags are for gas lines, and orange flags are for communication lines. This process, often coordinated through the local “Call Before You Dig” service, helps avoid damaging existing infrastructure.

Aerial vs. Underground Fiber

There are two main construction methods in fiber optic network installation—aerial fiber and underground fiber—each with unique advantages and trade-offs.

Aerial Fiber Network

An aerial fiber network uses existing telephone or power poles to hang fiber optic cables overhead.

• Pros: Lower cost and faster deployment since it uses existing pole infrastructure.

• Cons: Greater exposure to weather and physical damage, which can lead to higher outage risks.

Underground Fiber Network

An underground fiber network involves burying the cables—usually inside protective conduits—below the ground surface.

• Pros: Reduced exposure to weather, vandalism, and accidents; lower outage risk.

• Cons: Higher initial construction cost due to excavation and restoration work.

Deciding between aerial vs underground fiber depends on factors like geography, population density, local regulations, and long-term maintenance costs.

4. Fiber Cable Installation

Once the routes are cleared and prepared, the fiber cable installation process begins. This stage includes either aerial fiber installation or underground fiber installation, depending on the project design.

Aerial Fiber Installation

In aerial fiber installation, technicians string cables between utility poles using pulleys and tensioners. The cables are attached to the poles with clamps and spacers to maintain proper distance and tension. Because it’s faster and less disruptive, aerial installation is common in suburban and rural areas where pole lines are already in place.

Underground Fiber Installation

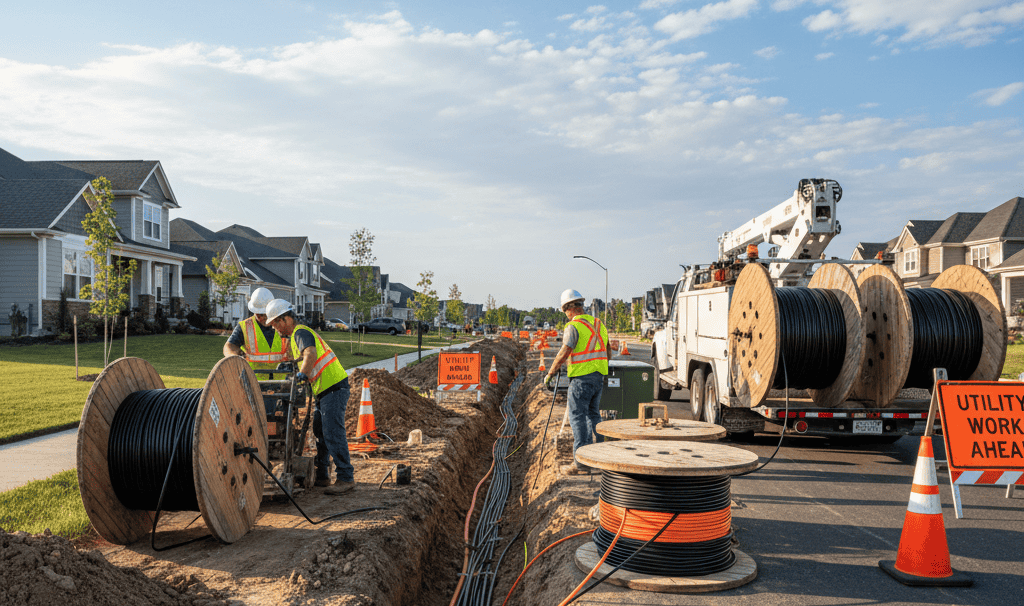

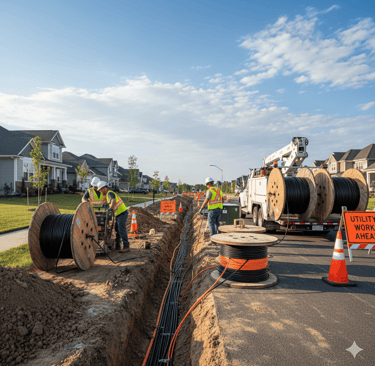

Underground fiber optic cable installation is common in urban or high-traffic areas where aesthetics and reliability are priorities. Cables are pulled through conduits or ducts buried below the surface, often beneath streets or sidewalks.

One advanced method for underground installation is micro trenching—a minimally invasive technique where narrow, shallow trenches (often just 1–2 inches wide) are cut into pavement or concrete to lay fiber. Micro trenching fiber is faster, less disruptive to traffic, and more cost-effective than traditional trenching, making it a popular choice for FTTH providers expanding in dense urban areas.

5. Splicing and Testing the Fiber Network

Because fiber optic cables don’t come in one continuous length, sections must be joined together through splicing. This process fuses two glass strands so light signals can travel through them without interruption. Splicing is a delicate process requiring precision and cleanliness to prevent signal loss.

These splices are housed in protective enclosures—such as above-ground cabinets, pole-mounted cases, or underground handholes—to shield them from moisture, tension, and environmental damage.

After splicing, technicians perform fiber optic testing using tools like Optical Time Domain Reflectometers (OTDRs) to check for light loss, continuity, and connection quality. Proper testing ensures that the fiber optic cable setup is functioning at peak performance before the network is activated.

6. Connecting Fiber to the Home (FTTH)

The final stage in fiber optic network construction is connecting the network to individual residences or businesses—known as Fiber to the Home (FTTH) or FTTH internet. In this stage, the main fiber optic infrastructure is extended from neighborhood distribution points to each subscriber’s premises.

Technicians install an Optical Network Terminal (ONT) at the customer’s location, which converts the optical signal into digital data for use by routers and devices. FTTH providers and other fiber to the home providers offer different service tiers depending on speed and bandwidth needs.

An efficiently built FTTH network delivers ultra-fast, symmetrical speeds (equal upload and download speeds) and unmatched reliability compared to traditional cable internet or DSL.

Conclusion

A well-executed fiber optic construction plan ensures long-term reliability, minimal maintenance, and scalability for future upgrades. As cities grow and technology advances, fiber networks become the backbone of everything from smart homes to 5G infrastructure and cloud-based services.

Whether installing aerial fiber in rural regions or using micro trenching for urban broadband expansion, proper planning, site survey, and precise fiber optic installation are the foundations of modern connectivity.

FAQs

1. Why are construction crews working near or on my property?

Crews are installing new fiber optic lines as part of a citywide or neighborhood upgrade. In most cases, work is being done within a public right-of-way or utility easement—areas designated for utilities such as water, power, and communication lines.

2. I didn’t sign up for fiber internet—why are workers still on my property?

Even if you haven’t subscribed, the fiber network infrastructure may run through a public easement or right-of-way that crosses your property. Crews have legal access to these areas to install and maintain utility lines that serve your neighborhood.

3. What is a right-of-way or easement?

A right-of-way or easement is a section of land that allows utility companies to install or maintain essential infrastructure such as internet, electricity, water, and gas lines. Easements typically exist along streets, sidewalks, or the edge of private property.

4. Will my yard or landscaping be disturbed?

Crews do their best to minimize disruption. However, depending on where existing utilities are located, temporary disturbance to grass, soil, or landscaping may occur. After work is complete, construction teams restore affected areas as close as possible to their original condition.

5.What do the colored flags near my property mean?

During fiber optic network construction, crews place colored flags or paint markings near your property to indicate the location of underground utilities. Each color represents a different type of utility:

• Red – Electric power lines

• Yellow – Gas lines

• Orange – Communication lines, including fiber optic cables

• Blue – Water lines

• Green – Sewer or drainage lines

6. Will fiber construction damage my driveway, sidewalk, or fencing?

Work near driveways or sidewalks may involve small cuts or trenches to install underground fiber conduits. These areas are repaired and restored once construction is complete. Fences located within easements are not typically removed unless necessary, and homeowners are notified beforehand.

7. How long will construction last in front of my home?

The duration varies by project size and weather conditions. Typically, work in front of a specific property lasts a few days to a week, though restoration and testing may take longer.

8. Will construction crews need access to my backyard?

In most cases, no. Work is usually limited to the front or side easement areas along public streets. However, if easements exist in the backyard, crews will notify homeowners before entering.

9. What safety precautions are taken during construction?

Crews follow local safety standards, mark underground utilities before digging, and set up traffic cones or barriers around work zones. Residents are advised to keep children and pets away from active construction areas.

10. Who should I contact if I believe my property was damaged?

If you notice any property damage after construction, contact the fiber provider’s construction support line or community liaison listed on your neighborhood notice or door tag. Provide photos and details so the issue can be reviewed and resolved quickly.
